| Items | L074105 |
| Battery Cell Composition | LiFePo4 |
| Nominal Voltage | 73.6V |
| Nominal Capacity | 104Ah |
| Energy | 7.65kWh |
| Operating Voltage | 57.5V~83.95V |
| Weight | 149.9lbs(68kg) |
| Dimensions | 23.6×13×10.8in (600×331×274mm) |
| Communications System | CAN Bus |
| Max Continuous Discharge Current | 150A |
| Max Peak Discharge Current | 300A(25℃,30s) |
| Max Continuous Charging Current | 70A(25℃) |
| Max Peak Charging Current | 300A(25℃,30s) |
| Operating Temperature | -4°F～131°F ( -20°C ～ 55°C) |
| IP Rating | IP67 |
| BMS | Yes |
| Heating System | Yes |
| Optional Accessories | 9.2inch display |
| Charger specifications | 1.8kW/3.3kW |
Lithium Battery For Golf Cart

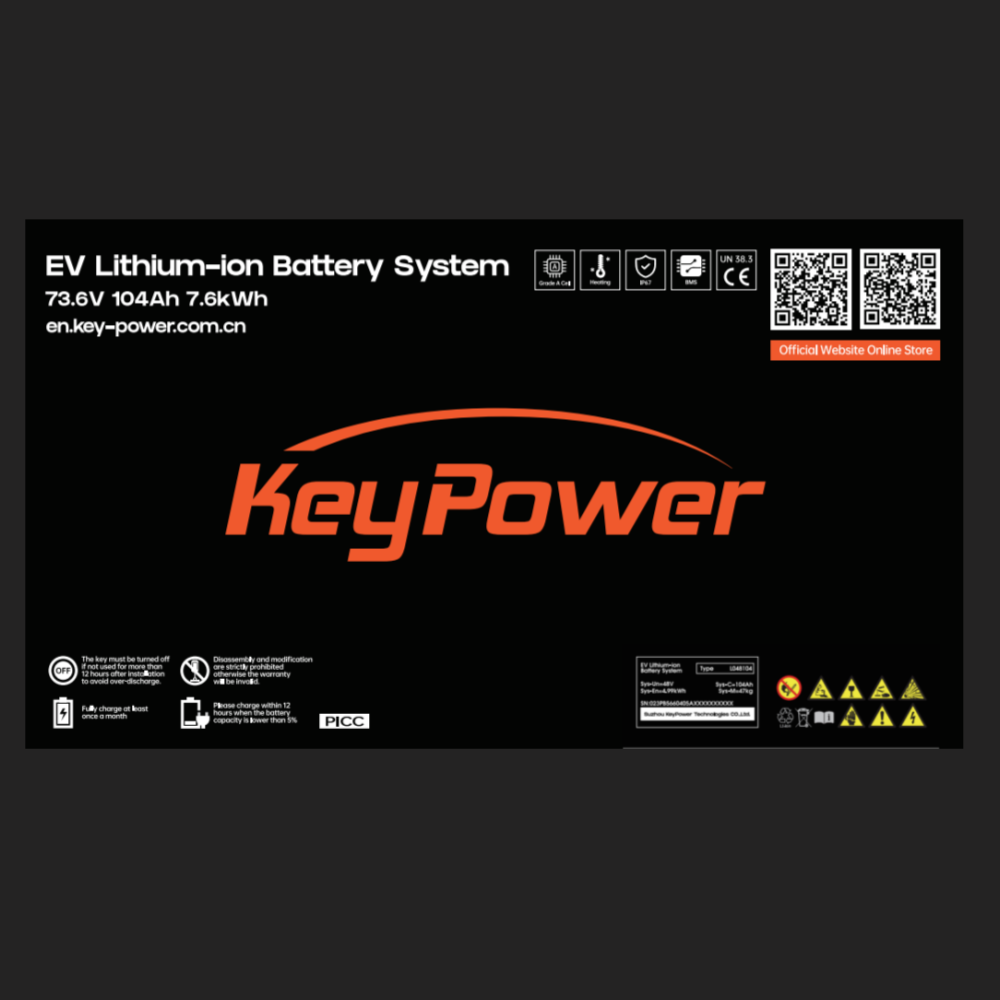

KeyPower 72V 105Ah lithium Iron Phosphate lithium-ion Battery
SAFE AND HIGH-QUALITY
1: Passenger Vehicle Level Quality Assurance.
2: Charging below 0℃ with heating to avoid short circuit and fire caused by lithium analysis.
3: IP67 waterproof, prevent water from entering the battery pack to avoid internal short circuit and fire
4:Built-in Smart BMS for real-time monitoring and management of the battery to avoid safety hazards.
5:With high level of insulation withstand voltage, the risk of electric shock for Drivers and passengers is eliminated.
6: 5 years warranty and over 10 years designed service Life.
