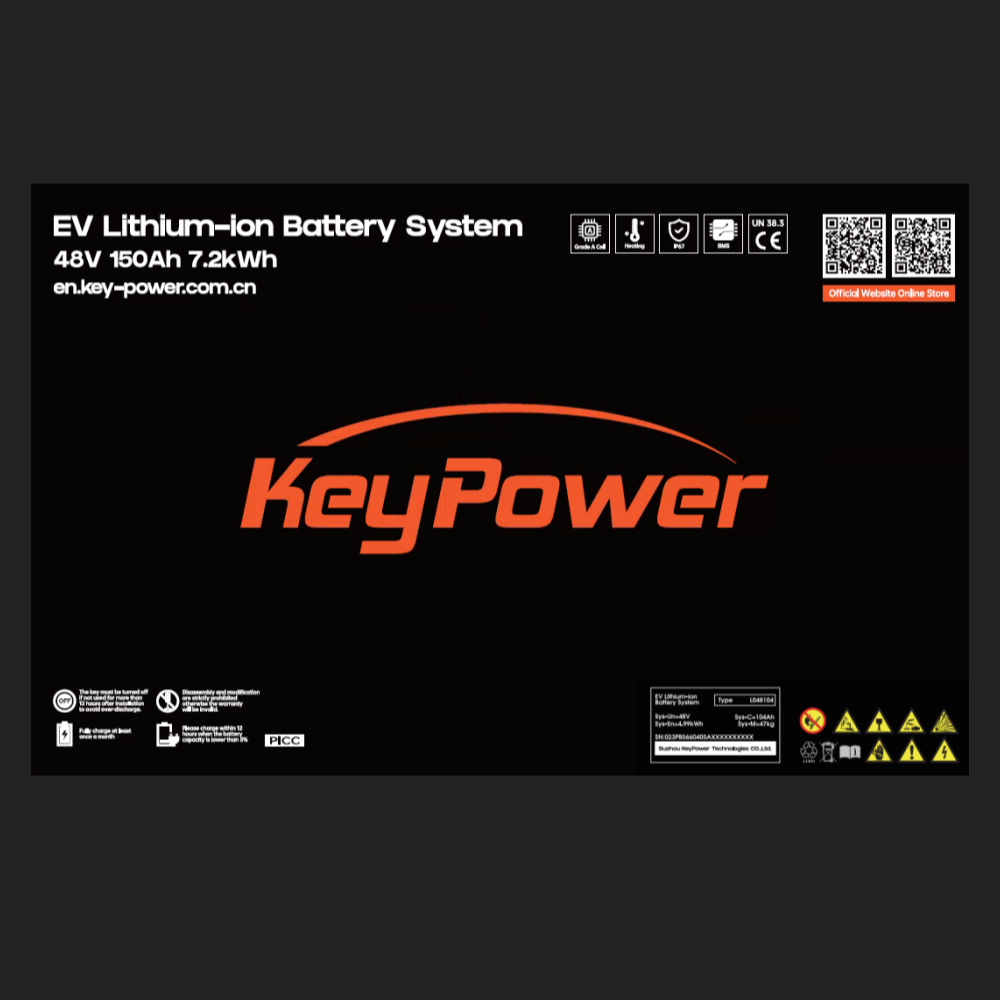

KeyPower 48V 150Ah LiFePO4 Lithium ion Battery

SAFE AND HIGH-QUALITY

1: Passenger Vehicle Level Quality Assurance.
2: Charging below 0℃ with heating to avoid short circuit and fire caused by lithium analysis.
3: IP67 waterproof, prevent water from entering the battery pack to avoid internal short circuit and fire
4:Built-in Smart BMS for real-time monitoring and management of the battery to avoid safety hazards.
5:With high level of insulation withstand voltage, the risk of electric shock for Drivers and passengers is eliminated.
6: 5 years warranty and over 10 years designed service Life.

Category:
Items L048150
Battery Cell Composition LiFePo4
Nominal Voltage 48V
Nominal Capacity 150Ah
Energy 7.2kWh
Operating Voltage 37.5V~54.75V
Weight 132.3lbs(60kg)
Dimensions 25.9×12.6×10.2in
(1037×320×260mm)
Communications System CAN Bus
Max Continuous Discharge Current 150A
Max Peak Discharge Current 300A(25℃,30s)
Max Continuous Charging Current 70A(25℃)
Max Peak Charging Current 300A(25℃,30s)
Operating Temperature  -4°F～131°F
( -20°C ～ 55°C)
IP Rating IP67
BMS Yes
Heating System Yes
Optional Accessories 9.2inch display
Charger specifications 1.2kW/-2.0kW/3.3kW
